MaxiLED Lighting has further expanded the Large Globe Series with the introduction of the MaxiPENDANT range. This range utilises the unique, patented MaxiLINK® Data-over-Power system, enabling fully addressable RGBW DMX512 control for up to 100 luminaires on a single 48V circuit. All drivers and controls can be housed up to 75 meters away.
The MaxiLINK® system includes a power supply in a fully wired kit. On the input side, it connects to a third-party DMX player or show design software via a DMX signal cable, along with a power source (120/240 VAC). It then outputs both data and power (48VDC) over a single cable to the MaxiLED luminaires. Typically, each MaxiLINK® controller is dedicated to an individual run or strand.
Simple, clean, unique, and proudly made in the U.K.

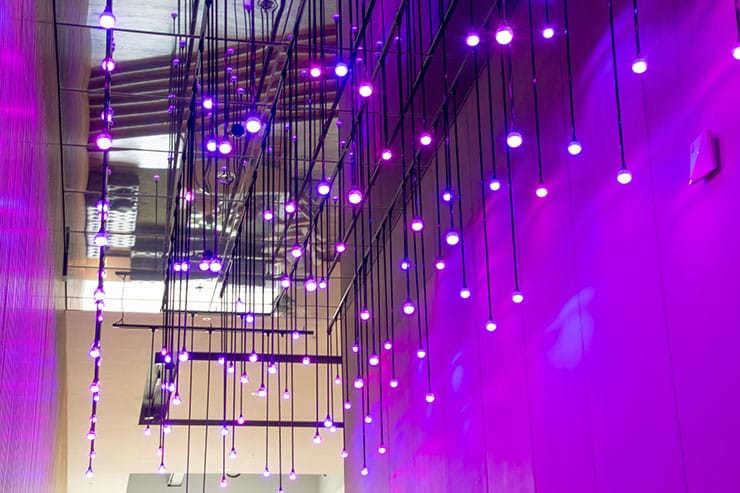

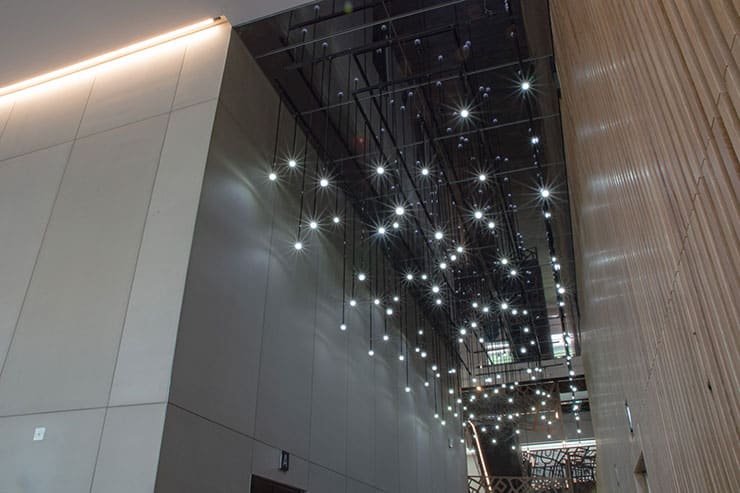

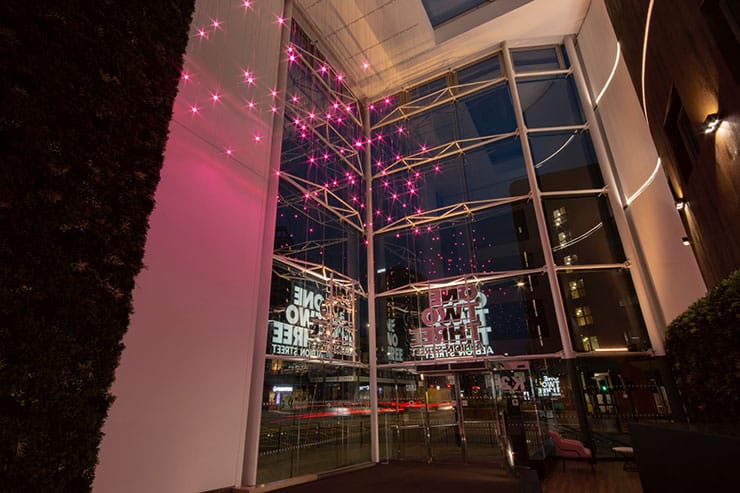

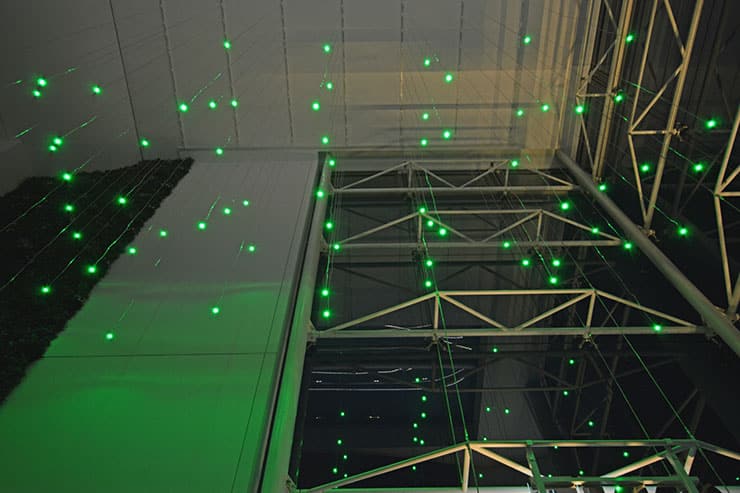

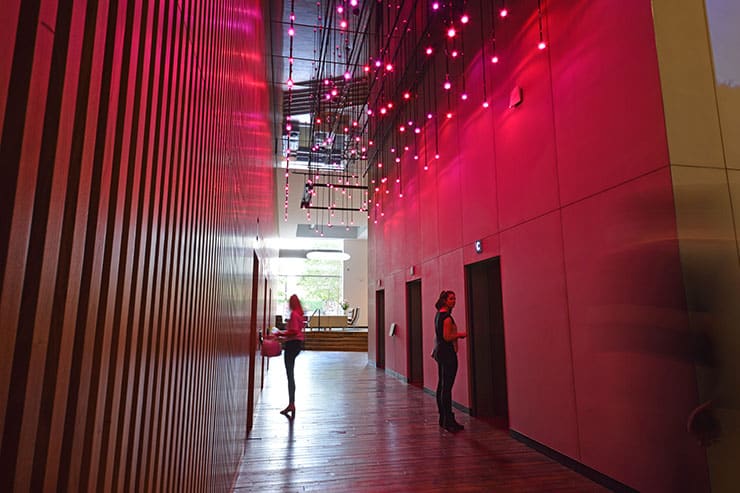

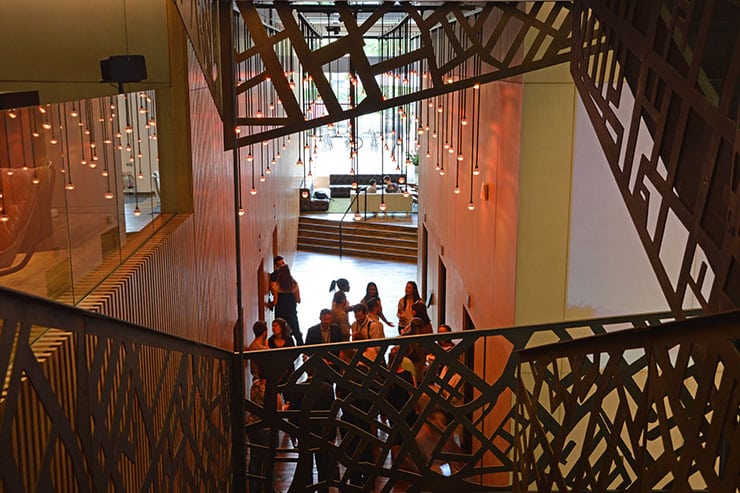

The MaxiPENDANT brings full DMX flexibility to any project, enabling dynamic lighting displays that animate and enhance spaces with suspended fields of light.
Specifications:
• Mounting Options: Recessed, Surface, or 3-Circuit Track
• Suspension: Wire, Fixed, or Telescopic Rod
• Globe Options: Clear or Frosted (64mm diameter)
• Voltage & Power: 48V, 100mA | 2.4W
• Light Source: RGBW (also available in Static and Dynamic White with various colour temperatures)
• LED Type: CREE Multi-Chip
• Luminous Output:
• Clear: 80lm
• Frosted: 25lm
• DMX Performance: 44Hz refresh rate
• Circuit Capacity: Up to 100 fittings or 100m length
• Lengths: Custom-made to suit your project—no standard sizes stocked
• Finishes: Black, White, Aluminium, or custom RAL colours upon request
• Warranty: 5 Years
• Made in the United Kingdom
• UL / cUL. UKCA. CE. BS EN60598. IEC 60598. EP3278461.
