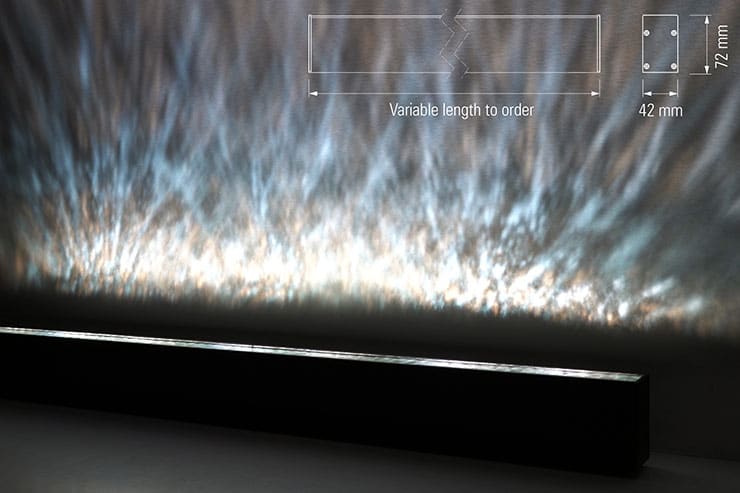

The Euclid 40 WE System IP20 is a linear, DMX-controlled, dynamic LED effect lighting system, designed for use in interior architectural lighting applications.
The Euclid 40 WE System IP20 is the latest and slimmest interior luminaire type in the popular Radiant water effect range.

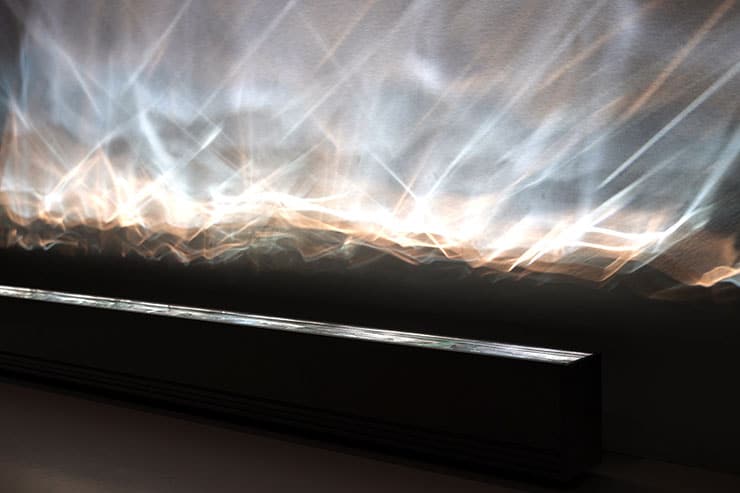

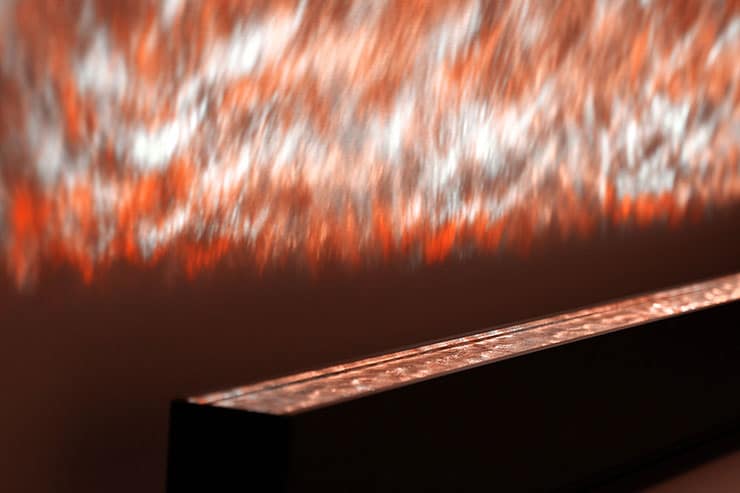

This system shares many of the same features as other Radiant WE luminaires. The mix of LEDs and the type of textured glass used can be specified before production to create the appropriate lit effect. The multi-channel DMX controlled dimming sequences can be changed on-site with multiple scenes available to achieve a variety of moods. The system produces decorative, abstract, dynamic lit effects, tailored to suit project requirements.
Each luminaire incorporates a linear light engine with an array of 8 x LEDs per 200mm, and a textured glass panel optic. Either integral LV DC to DC multi-channel DMX driver or remote AC to DC DMX driver versions are available.
As the system does not incorporate any motors or moving parts, and the LEDs are not run at full power for most of the dimming sequence, the fixture has a long working life of up to 100,000 hours. The system comes with a 5-year guarantee, and a refurbishment and repair service thereafter.
The Euclid 40 WE System IP20 can be run at up to 50 Watts per mtr, providing up to 3,000 lumens per mtr, depending on the mix of LED colours and colour temperatures and the textured glass used. The lumen output varies during the dimming control sequence.
A wide range of LED colours, colour temperatures and CRI options available. The LED colour or CCT of each of the LEDs within the light-engines can be specified.
The standard adjustable-angle bracket is rotatable along the major axis using a hex key, so that the light output can be aimed and locked with precision on-site. Custom bracketry is also available.
Anti-glare accessories including baffles and snoots are available to minimise glare.
The fixture is available in satin black, satin white or any RAL paint colour finish. Anodised finishes are also available.
Radiant’s range of Water Effect lighting systems was originally developed for the Light Bureau Landmärket project in Stockholm over 10 years ago and now includes a wide range of product types and formats for both interior and exterior lighting applications.
