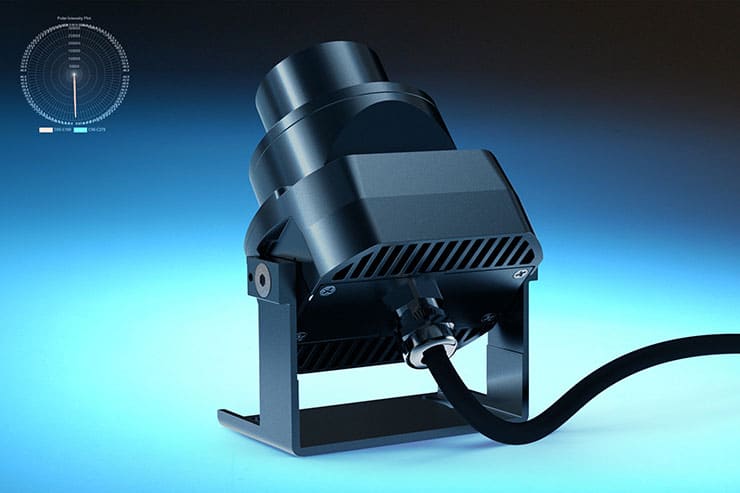

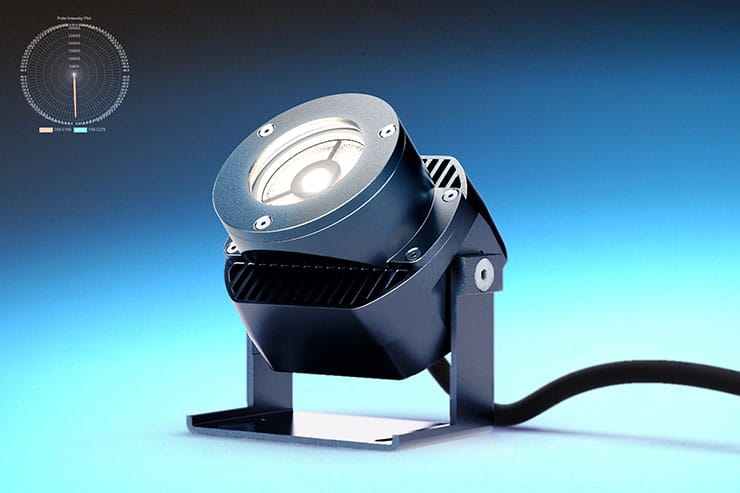

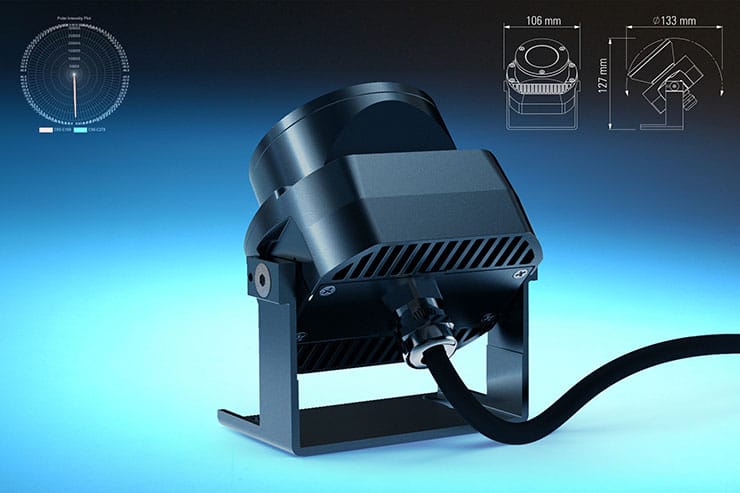

The D 100 projector Ultra-Narrow Beam is a small but powerful lighting tool, enabling lighting designers to illuminate small details from a great distance. The compact and discreet fixture can be installed out of view, whilst the desired architectural feature or object can be perfectly highlighted.
The D 100 IP66 projector range was developed for use in exterior architectural, landscape and garden lighting applications, which require powerful, highly controlled lighting effects.
Using a single miniature high-power LED combined with a recently developed, more efficient, very narrow 4-degree beam optic, these luminaires produce a clean spot of light without producing an image of the LED die.
Each D 100 4-degree projector produces a highly focussed beam of light and can operate at up to 4.8 Watts, giving up to 480 Lumens from a single Luxeon Rubix LED. Lumen output will vary depending on output binning, colour temperature and CRI.
Both integral LV DC to DC driver and remote AC to DC driver versions are available. Dimming options include 1-10 V, DMX and DALI.
Anti-glare snoot accessories can be specified, helping to minimise glare. The snoots can be specified to custom lengths and angled side-profiles.
A variety of mounting options are available. The standard adjustable angle mounting bracket allows for precision aiming of the beam on-site by hand and can be easily locked in place using a hex key.
The projectors are available in satin black, satin white or any RAL or custom powder coat finish.
Either a low iron UV block glass cover or UV stable polycarbonate window can be specified.
