C1-nano-HC – corporate friends

The new C1-nano-HC is the smallest magnetic track spotlight from corporate friends ® with on-board dimming.

Technically and design-wise, it was a challenge to reduce the size even further. It now impresses with a head diameter of only 12 mm and a base body of approx. 16x19x10 mm.

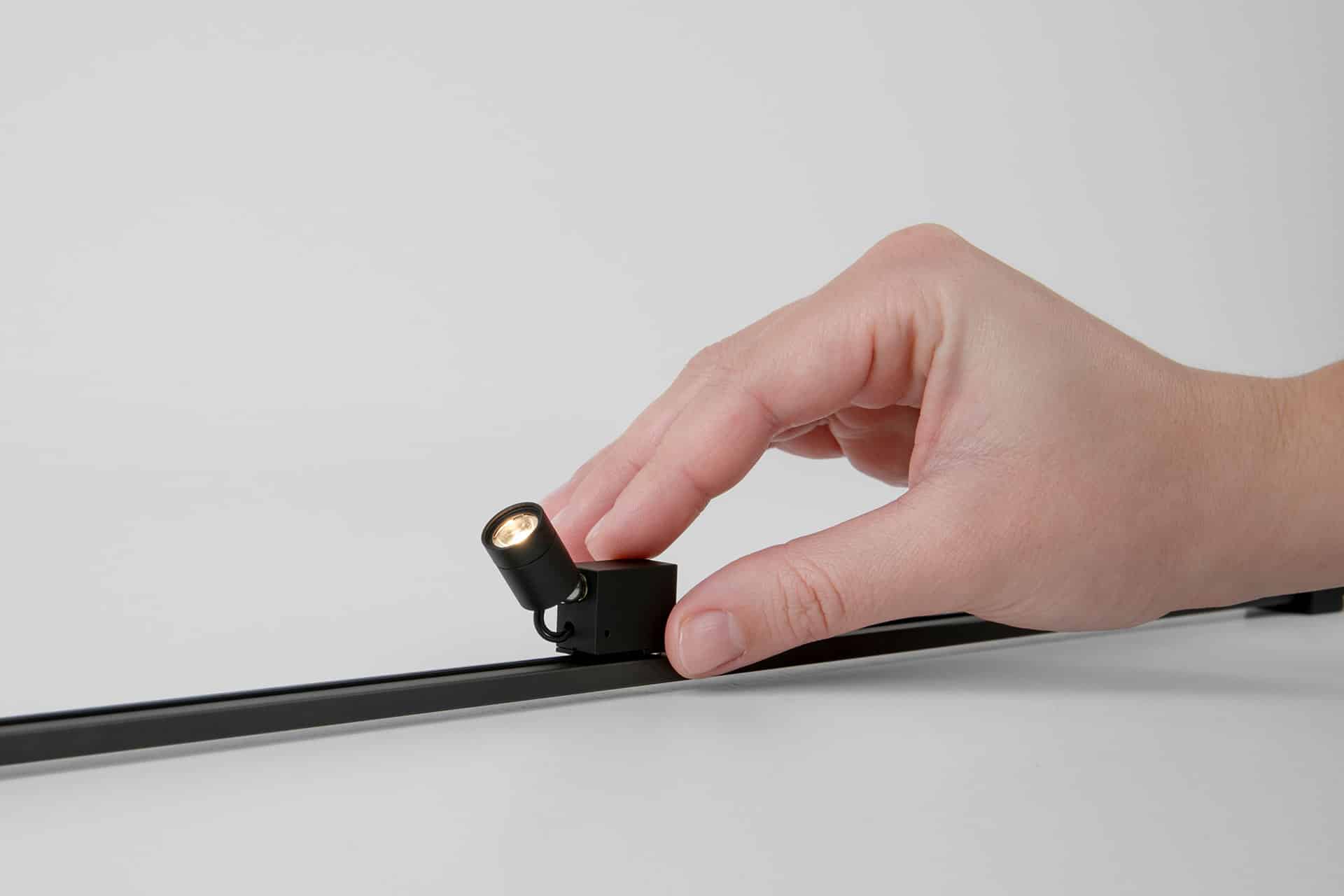

Thanks to its magnetic base, the C1-nano-HC can be positioned freely along the magnetic track with exceptional ease and precision. The magnetic track itself can also be mounted flexibly within the showcase, offering a high degree of design freedom for customized lighting concepts.

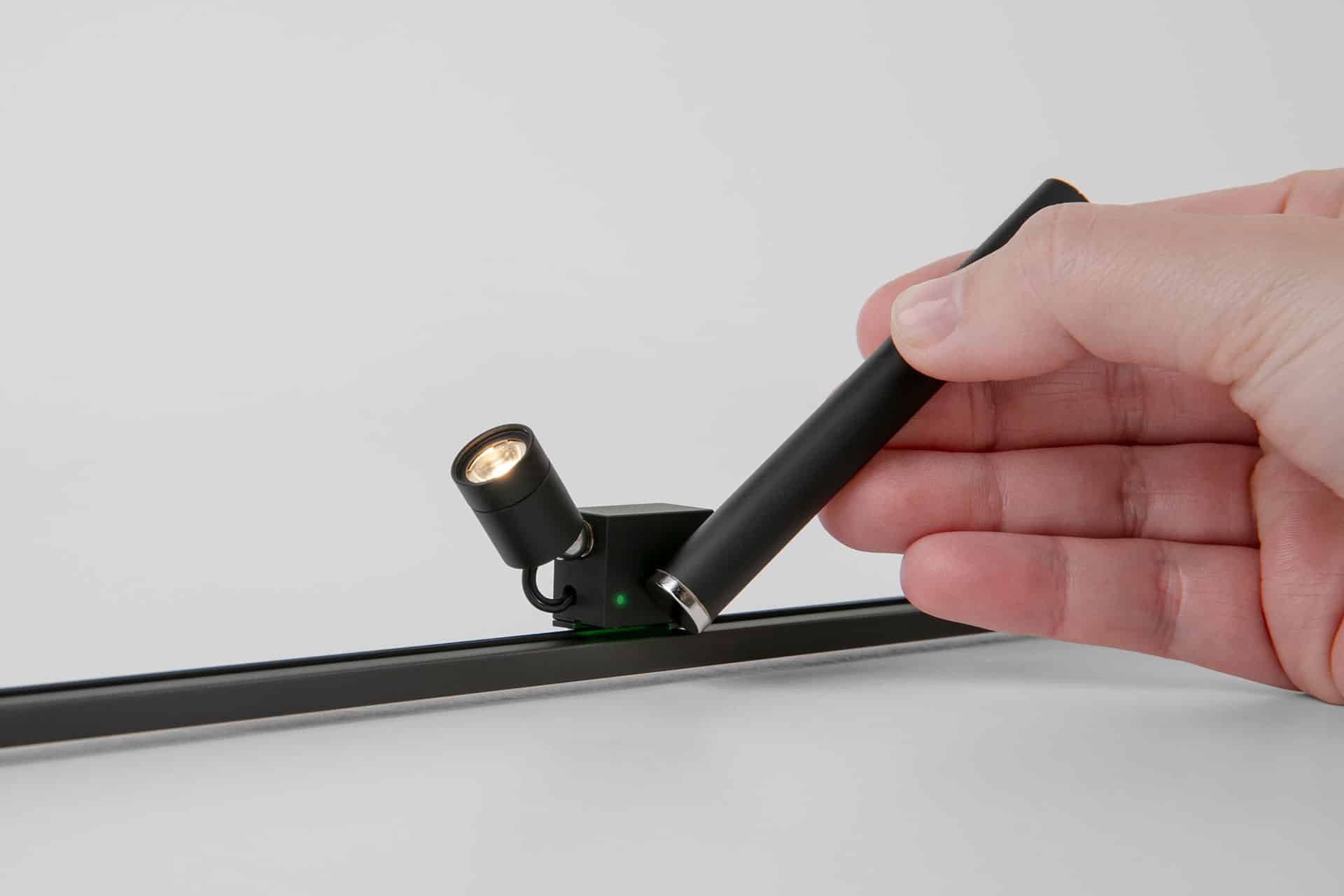

The tiny magnetic ball joint of the C1-nano-HC allows precise alignment of the spotlight head. With 180° swivel and 360° rotation, objects can be accurately accentuated. Dimming is controlled individually using a magnetic pen. With a frequency of 20 kHz, the spotlight remains flicker-free in a dimming range of 1–100%. The dimming value is saved after approximately five seconds.

The product family of the nano-series is expanded by mono points in different variants and designs, and the high modularity is complemented by a comprehensive range of accessories.

Up to seven interchangeable optics and a selection of accessories, such as honeycomb grids, anti-glare and slanted tubes, are available across the spotlight range. All spotlights in this product family are available in black, silver, gold, champagne, and bronze anodised colors.

Technical specifications:

Description:

LED spotlight for installation in display cases,
360° rotatable, 180° swivelling, for magnetic track

Optics:

18°, 26°, 30°, 45°, 80°, 47°+25°, 40°+10°

Housing colour:

aluminium anodised matte in black, silver, gold, champagne, bronze (other surface finishing on request)

Light colour (+/- 100 K):

~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K

High power LED, high CRI 97+:

DIN EN IEC 55015 (2020-07), lifetime 50,000 hours basis of lifetime L80B10

Luminous flux
