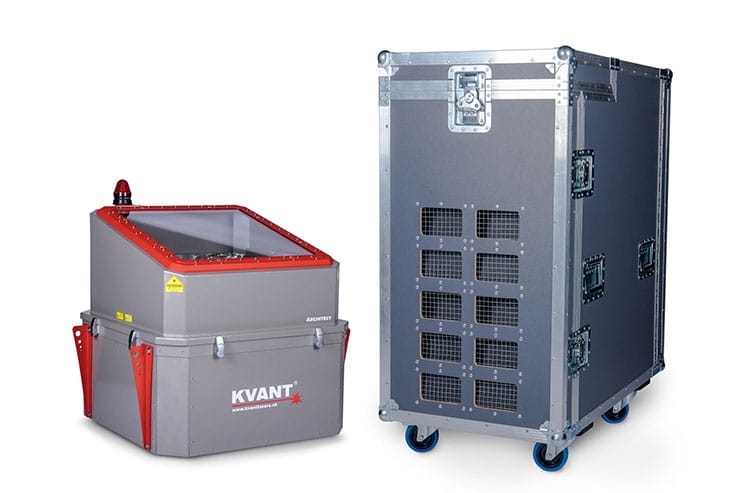

Built as a robust and IP65-certified container and equipped with a closed-circuit water cooling unit, the Architect laser projector outputs a 1500-watt large-format full-colour static laser beam. It is ready to be used permanently in most outdoor environments. Due to its beam proportions, the Architect offers better visibility from great distances than any other system on the market known to us.

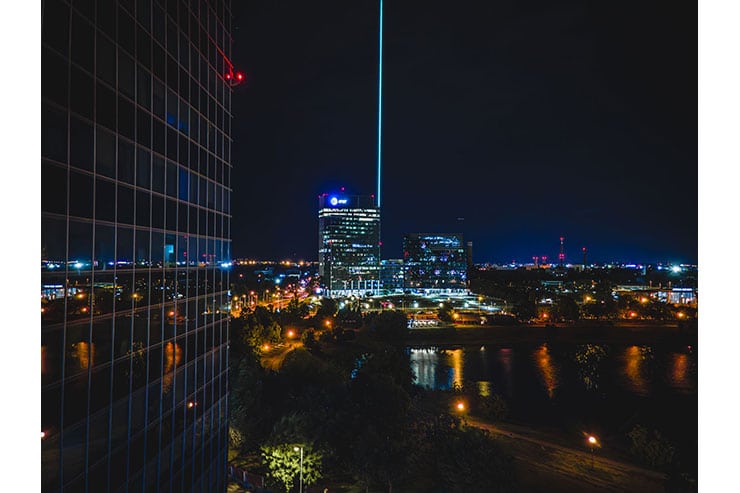

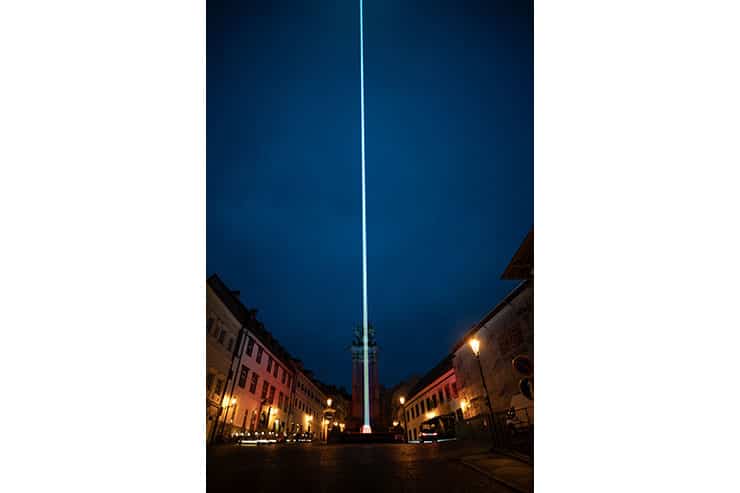

The W1500B is great for highlighting significant landmarks, structures and buildings. The beam coming out of the Architect laser projector draws attention from many miles away and adds a great deal of sublimity to already majestic natural or human-made objects, making them even more unique, appealing, and desirable.
The optional DMX-controlled heavy-duty platform offers a 350-degree pan and 60-degree tilt of the whole Architect fixture, allowing the beam to be moved and scanned across the sky.
Source | Type: Semiconductor laser diode | Full-colour RGB SKY laser
Suitability: Architectural installations | Landmark and Sky illumination
System control: FB4 [ArtNet, DMX] / Manual via supplied remote control box | Dimming 100-0%
Compliant with: EN 60825-1
Weight [kg]: 205 [laser projector] | 69 [chiller]
Size [WxHxD, mm]: 935 x 855 x 930 [laser projector] | 377 x 976 x 592 [chiller]
Guaranteed opt. output: 1499 watts
Installed modules R | G | B [W]: 304 | 611 | 584
Wavelengths [nm, ±5nm]: 638 | 525 | 465
Beam size [mm]: 600 x 600
Beam divergence [mrad]: 3.4 [full angle, averaged value]
X-Y scanners: Single beam output
Power requirements [V] | Input: 3-phase 208/400 VAC | 50-60Hz [laser projector] | 200-230/50-60Hz [chiller]
Max. power consumption [VA]: < 6,000 W [laser projector] | < 2,200 W [chiller]
Operation temperature [°C]: 5-40 [full power output at 5-35]
