The A-PLANE lighting solution followed the architects, BDG architecture and design, concept brief which placed significant emphasis on the necessity of incorporating both lighting and acoustics as integral components of the product. This design-led approach aimed to ensure that the overall product had a multitude of functions and technical compliance in line with CIBSE detailed by HDR the MEP consulting engineers requirements to ensure the product incorporated both form and practicality.
Due to the dimensions of A-PLANE- 7metre long and 3 meters wide were delivered to the install location in reuseable timber crates in three sections and the luminaire system was then assembled onsite, on purpose made aluminum tables. The luminaire and table were then elevated to the correct height and suspended via catenary wires. This system drastically reduced install time.

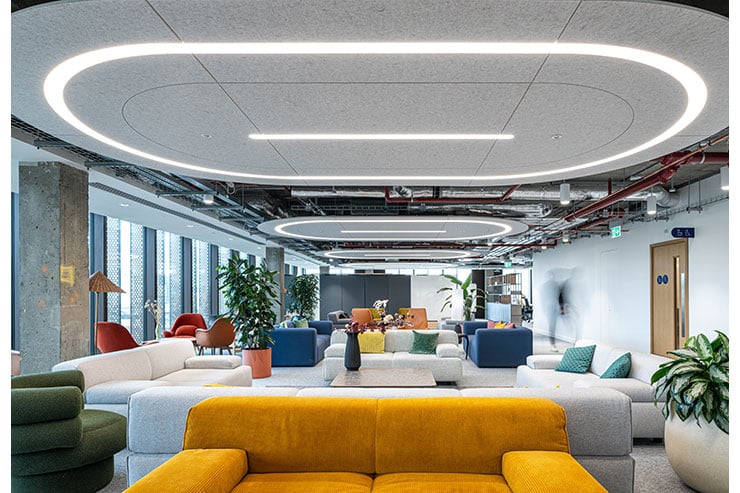

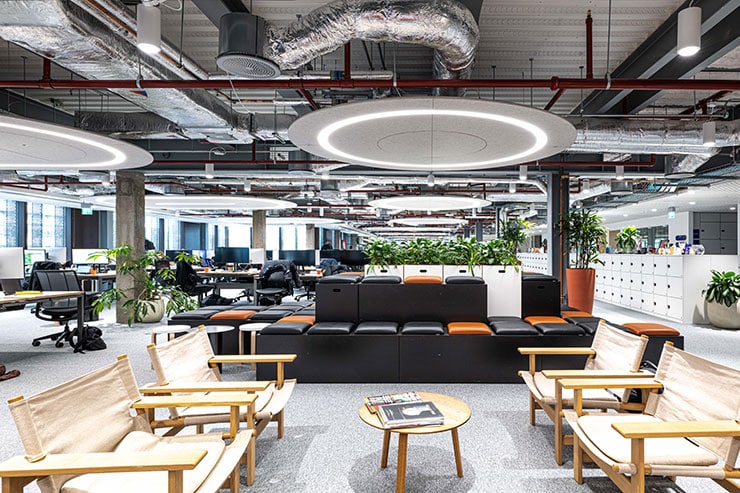

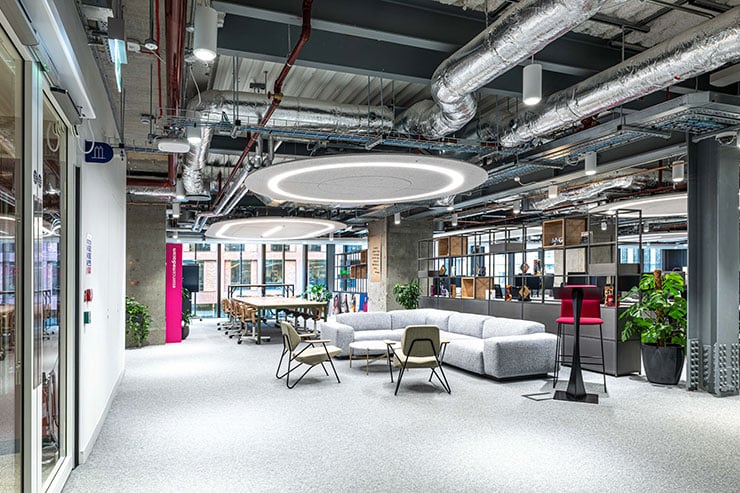

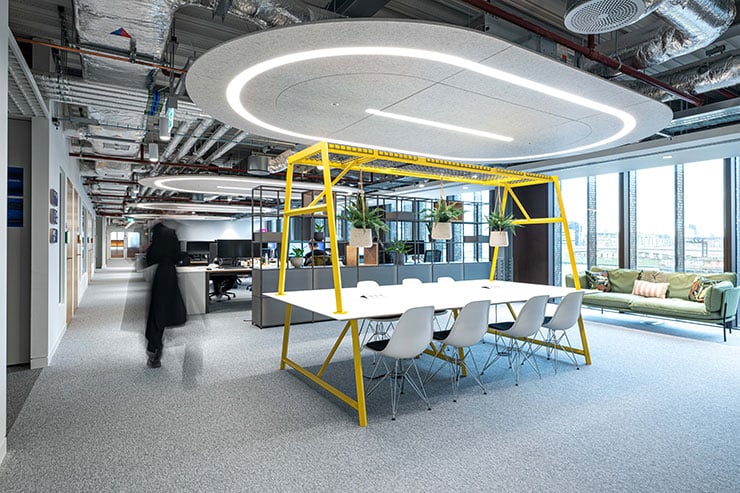

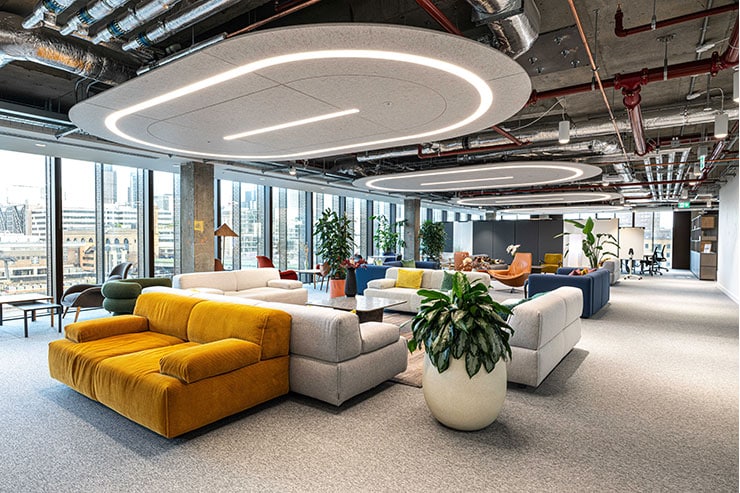

FUTURE Designs fabricated two versions, one circular, one obround with mechanical joints to allow for final assembly with plug and play electrical connectors.
Sustainability:
With sustainability and reuse at the forefront, the acoustic panels are created using recyclable material, additionally the acoustic material consists of two 12mm layers, bonded together with 45% of the material being reused, once again showing FUTURE Designs commitment to sustainability.
Minimising the environmental impact of the project. The top panels, made from various coloured off-cuts are hidden from view, meaning waste materials can be used without compromising the view of the installation. The lower panels, which are visible, are made from fresh sheets as the acoustic material was laminated in two layers.
The A-PLANE by FUTURE Designs exemplifies our commitment to sustainability through innovative design and resourceful reuse of materials. The acoustic panels in the A-PLANE light system are crafted by bonding 2x12mm panels together. The underside is finished in the architect’s chosen colour, while the rear panels are made from pre-used acoustic panels of identical performance, achieving a remarkable 45%?reuse of materials. This approach not only ensures high acoustic performance but also significantly reduces waste, in line with FUTURE Design’s carbon careful™ initiative.
All completed products are delivered to sites in reusable, purpose-made timber crates (FSA Coding for timber). These crates are collected and reused for multiple deliveries, significantly reducing packaging waste. To simplify installation and ensure that no hands touch the front face of the panels, FUTURE Designs have developed purpose-made platforms. This innovative approach not only protects the product during installation but also streamlines the process, reducing labour time and costs.
FUTURE Designs produced bespoke tables to facilitate the on-site assembly of the products, allowing them to be efficiently lifted into place using genie lifts – streamlining the installation process.
The A-PLANE product has been designed to provide a large technical light feature but designed to allow for it to be supplied in sections for ease of transit from Kent to London and also into the building via the goods lifts. It offers both acoustic and lighting properties with access for hidden fan-coils and also can incorporate sprinkler heads into the design.
